Ready robotic system
GR.SYS.6.MA

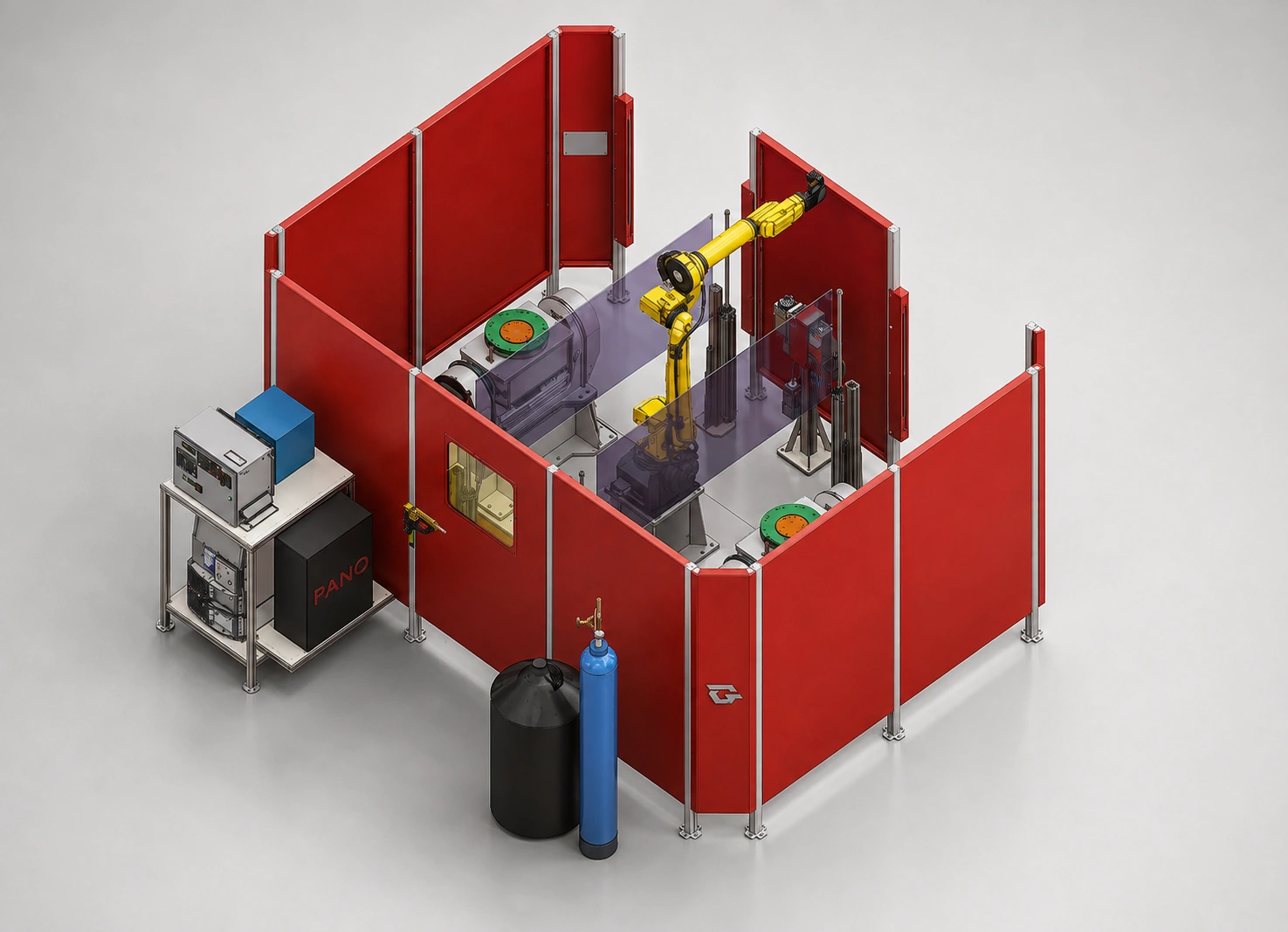

Compact cell layout
Robot and positioning units grouped within a compact work envelope.
- Layout family
- Single robot
- System views
- 4 angles
The system code is added to the project brief automatically.
Layout approach
How is this system
configured?
This layout is an engineering starting point. Robot reach, part loading and operator access are validated against your actual part and production flow.
Main visible components
- 01Robot and welding work area
- 02Part carrier and positioning arrangement
- 03Cell perimeter and auxiliary equipment
Final dimensions, payload, cycle time and safety scope are confirmed during application engineering.
Discuss Your Project
What would you like to change in your production?
Tell us about your part, current welding process and target. We will help define the right starting point for your application.
